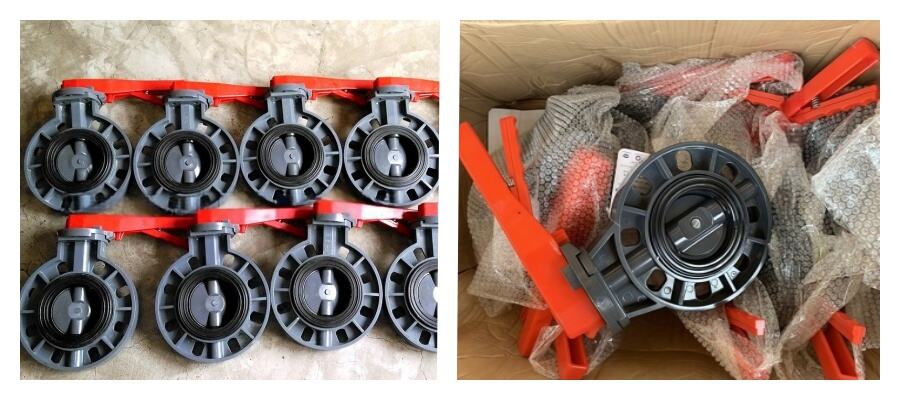

PDV-3UUX Pneumatic UPVC Butterfly Valve

Product overview

The material of the pneumatic plastic butterfly valve is hygienic and non-toxic, with simple structure, small size, light weight, low material consumption and small installation size. The connection is made by clamping flanges at both ends, which is easy to disassemble and repair. It is wear-resistant, easy to disassemble, and simple to maintain. The switch is quick, 90-degree reciprocating rotation, and the driving torque is small. There are a variety of materials to choose from according to different media. They have strong corrosion resistance and small size. They are suitable for a variety of pipelines and have a wide range of applications.

Pneumatic UPVC Butterfly Valve

- Nominal diameter: DN50-DN300

- Nominal pressure: 1.0MPa

- Valve body material: UPVC, CPVC, PPH, PVDF

- Connection method: clamp type

- Driving mode: compressed air 4-7bar (can be equipped with manual device)

- Valve core structure: disc type centerline valve core

- Sealing material: FPM, EPDM, NBR

• Optional accessories: limit switch, positioner, solenoid valve, pressure reducing valve
