Product overview
The electric knife gate valve adopts electric drive, wafer-type connection, rising pole parallel rigid single gate, the valve seat sealing surface material is fluoroplastic or stainless steel, the nominal pressure is PN6~16, and the valve body material is carbon steel or stainless steel.
Equipped with a multi-rotation electric device, the valve plate can move linearly up and down, and can remotely control the opening or closing of the valve. Diameter range: DN50~DN500, operating temperature ≤100℃, widely used in drainage, heating, power stations, chemical industry, food, papermaking, pharmaceuticals, coal, mining and other projects.

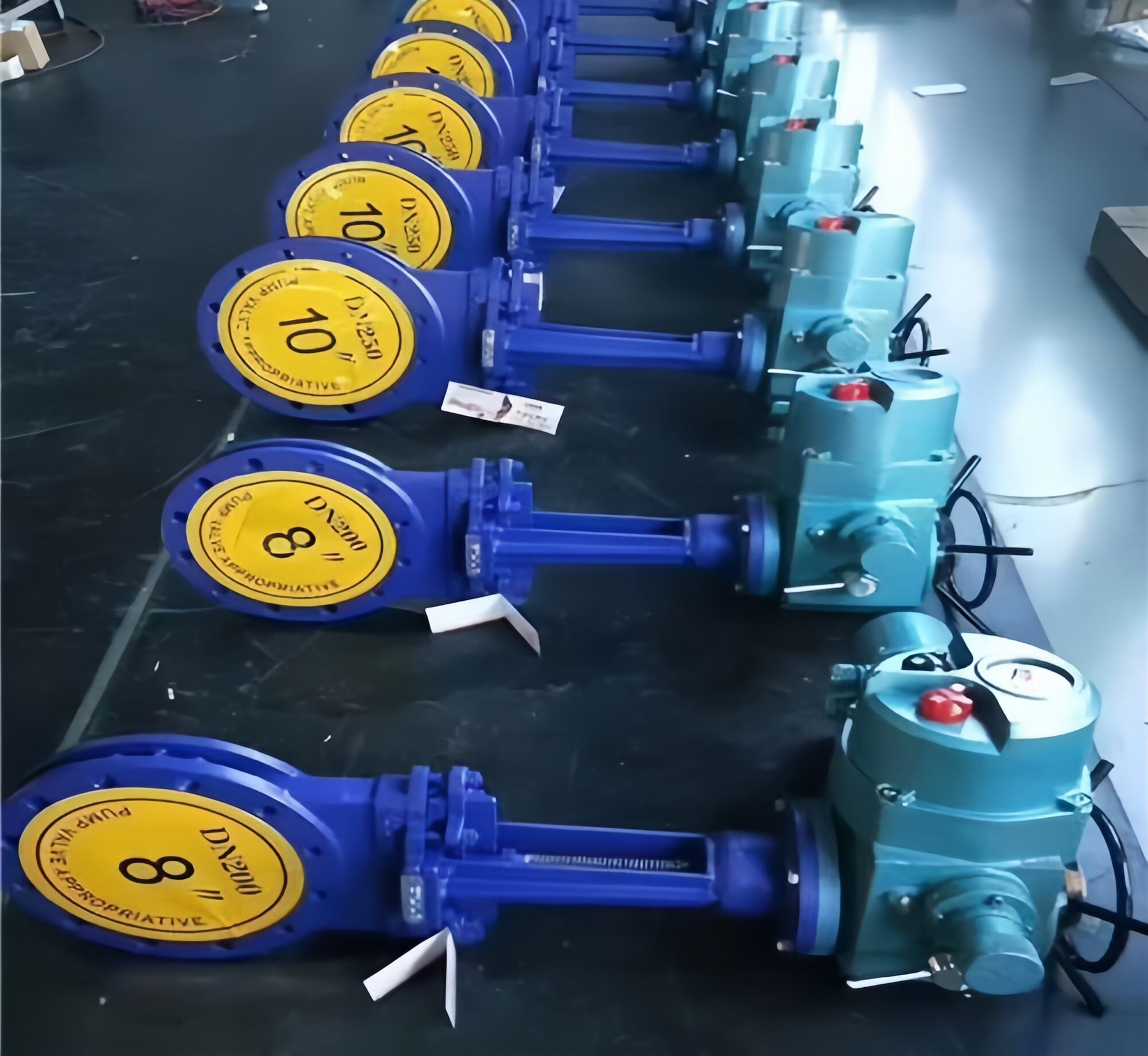

Electric Knife Gate Valve
- Diameter specifications: DN50-DN1000
- Structural form: clip-on type
- Valve body material: ductile iron, cast steel WCB, stainless steel 304
- Nominal pressure: PN10, PN16
- Applicable temperature: ≤350℃
- Application scope: paper pulp, sewage, coal slurry, ash, slag-water mixture
- Product features: The valve is small in size, has good sealing performance, smooth channel, and has slag discharge function.
